CP 648-S firestop single wrap strips

Configurator
Technical Data
Documents
Features & Applications
Related Products
16441.tif
CP 648 pipe wo ID plate

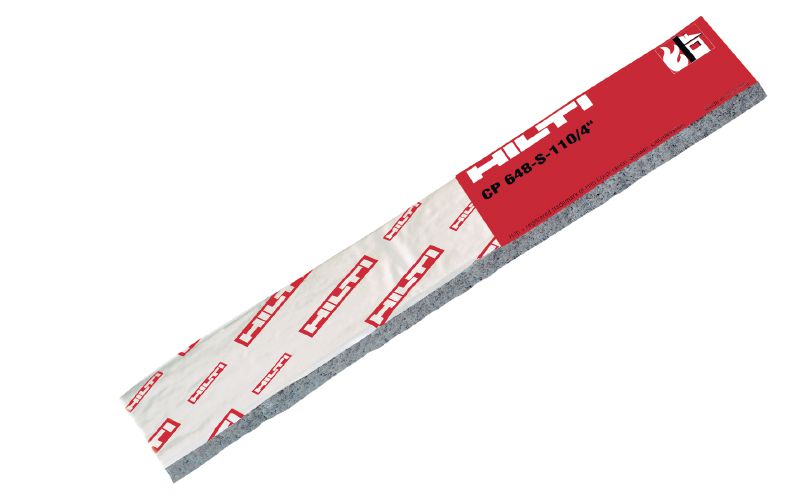

CP648 S Firestop picto,illustration wrap strip,single

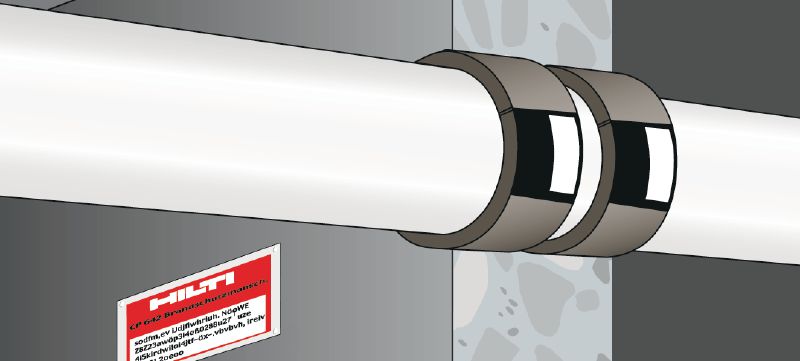

Pre-cut, intumescent, flexible firestop wrap strip to help create a fire and smoke barrier around combustible pipe penetrations

  • Base materials: Concrete, Masonry, Gypsum
  • LEED VOC: 7.6 g/l
  • Expansion ratio (unrestricted, up to): 1:19
ultimate

Choose options

Nominal pipe diameter
  • 63 mm
  • 90 mm
  • 110 mm
  • 125 mm
  • 160 mm
Width
  • 45 mm
Length
  • 0 m
  • 1 m
Pack size
  • 2 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From PHP9,223.20

Technical Data

Base materials
Concrete, Masonry, Gypsum
LEED VOC
7.6 g/l
Expansion ratio (unrestricted, up to)
1:19
Expansion temperature (approx.)
210 °C
Can be painted
No
Product class
Ultimate
Application temperature range
-5 - 50 °C
Storage and transportation temperature range
-5 - 50 °C
Temperature resistance range
-20 - 100 °C
Application
Other

Documents

Sustainability Documentation
Operating Instruction
pdf  VOC_AgBB_CFS-W_EN, English [ 259.6 KB ]
pdf  VOC_AgBB_CP648_EN, English [ 261.4 KB ]
pdf  VOC_Belgium VOC_CFS-W_EN, English [ 260.9 KB ]
pdf  VOC_LEED_CDPH_CP648-E & S_EN, English [ 293.9 KB ]
pdf  VOC_BE_CP 648_EN, English [ 262.1 KB ]

Features & Applications

Features

  • Quicker and easier installation – no hooks, anchors or drilling
  • Installed inside the base material – ideal when space and access are limited
  • Ideal for very tight installations

Applications

  • Easy firestopping where combustible pipes pass through fire-rated walls and floors
  • Concrete, masonry and gypsum wall assemblies

For approval or certificate information, please see individual items.
