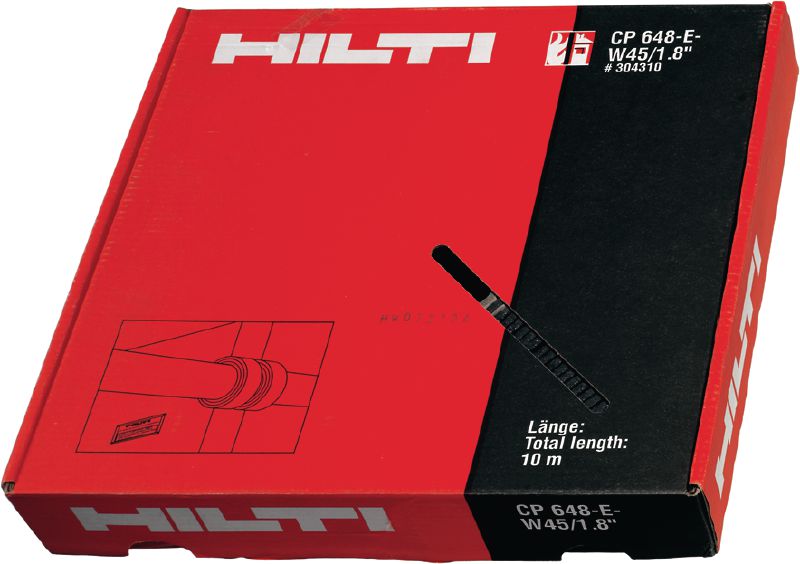

CP 648-E firestop endless wrap strips

CP648 E Firestop picto,illustration,wrap strip,endless
11820.tif
CP 648 pipe wo ID plate
CP648 E Firestop picto,illustration,wrap strip,endless

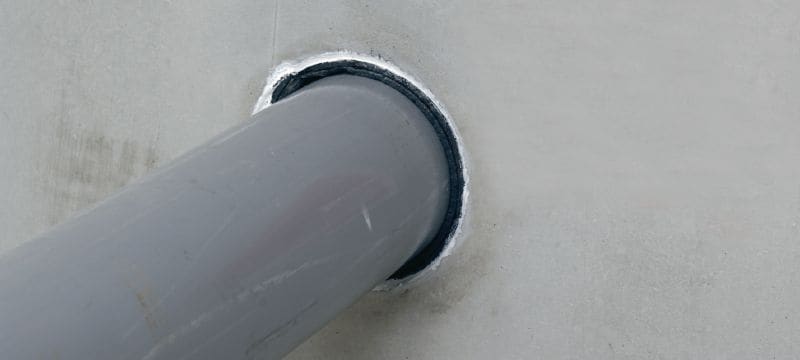

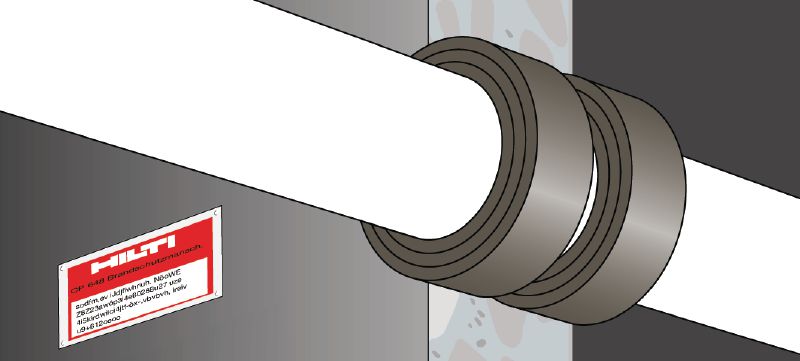

Intumescent, flexible firestop wrap strip to help create a fire and smoke barrier around combustible pipe penetrations

  • Base materials: Concrete, Masonry, Gypsum
  • LEED VOC: 7.6 g/l
  • Expansion ratio (unrestricted, up to): 1:19
ultimate

Customers also searched for intumescent wrap or pipe wrap.

Choose options

Width
  • 45 mm
Length
  • 10 m
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
PHP14,387.40
PHP14,387.40
/
1 Piece

Technical Data

Base materials
Concrete, Masonry, Gypsum
LEED VOC
7.6 g/l
Expansion ratio (unrestricted, up to)
1:19
Expansion temperature (approx.)
210 °C
Can be painted
No
Length
10 m
Height
5 mm
Product class
Ultimate
Application temperature range
-5 - 50 °C
Storage and transportation temperature range
-5 - 50 °C
Temperature resistance range
-20 - 100 °C
Application
Other

Documents

pdf CP 648-E product catalog [ 49.5 KB ]

Features & Applications

Features

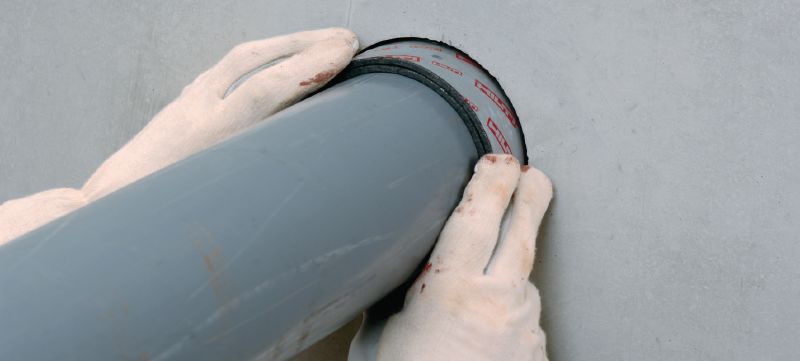

  • Quicker and easier installation – no hooks, anchors or drilling
  • Installed inside the base material – ideal when space and access are limited
  • Endless solution – one product for most penetrant sizes

Applications

  • An intumescent, flexible firestop wrap strip for combustible pipe penetrations
  • Concrete, masonry floor and gypsum wall assemblies

For approval or certificate information, please see individual items.
