CFS-COS Firestop composite sheet

FS comp. sheet CFS-COS 36X36 stainl stl #2135884

Configurator
Technical Data
Documents
Features & Applications
Related Products
L137245 (198437)

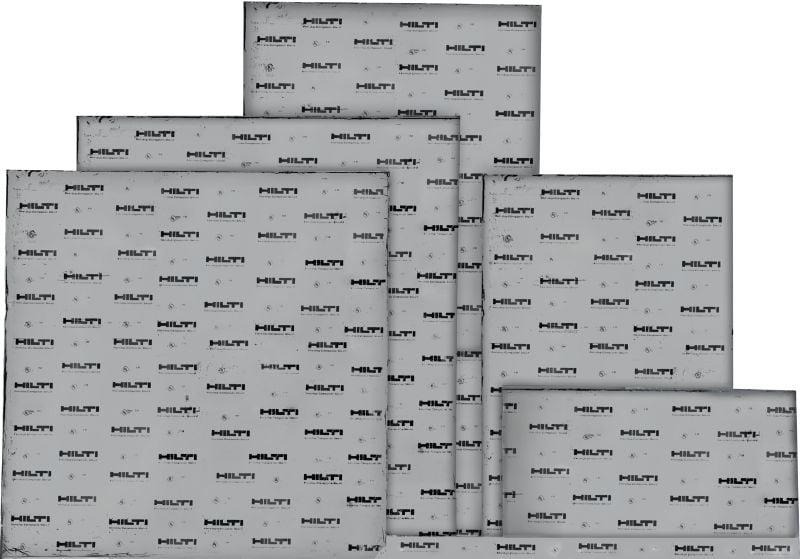

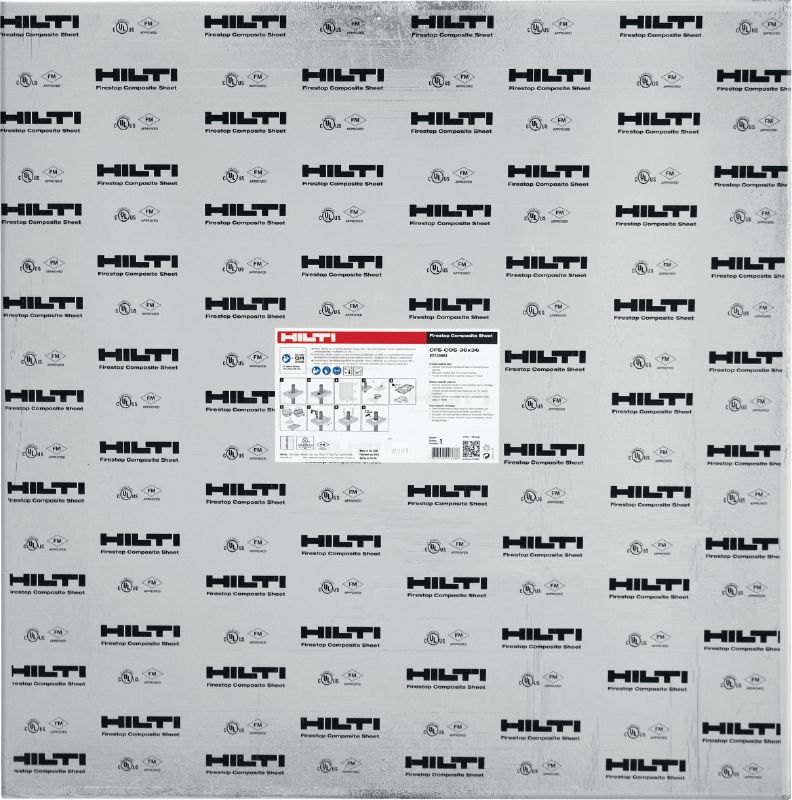

CFS-COS 36X36 (82841)

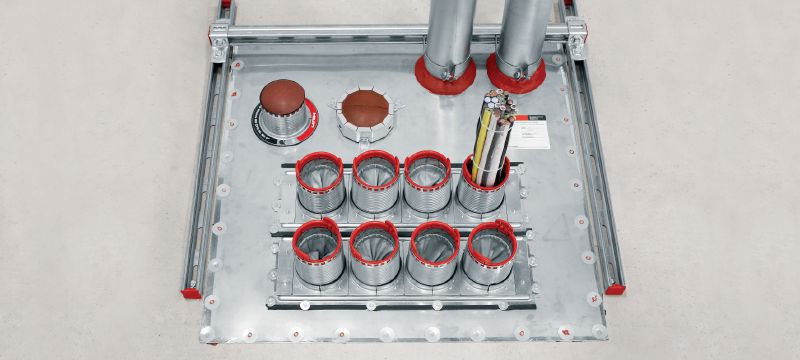

CFS-COS Installed with GX (82845)
L137246 (198436)

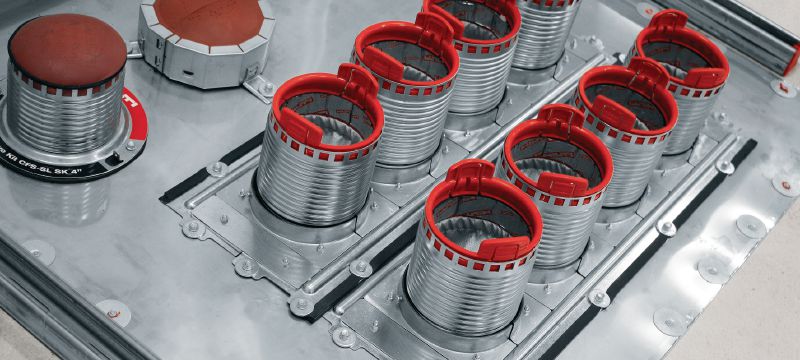

CFS-COS w/ Gangplate (82844)
CFS-COS Installation (82843)

Thin steel firestop composite sheet ideal for sealing large openings with single, multiple and/or mixed services

  • Dimension (L x W): 914 x 914 mm
  • Base materials: Concrete, Concrete over metal deck, Concrete block, Drywall
  • Application temperature range: -30 - 48 °C
ultimate

Choose options

Dimension (L x W)
  • 914 x 914 mm
Pack size
  • 4 pc
 Product options
Quantity
Packs
Total Pieces
4
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
PHP44,381.70
PHP44,381.70 / 1 Piece

Technical Data

Dimension (L x W)
914 x 914 mm
Base materials
Concrete, Concrete over metal deck, Concrete block, Drywall
Application temperature range
-30 - 48 °C
Storage and transportation temperature range
-30 - 48 °C
Temperature resistance range
-30 - 121 °C
Surface burning characteristics UL 723 (ASTM E84)
Flame spread: 5<BR>Smoke development: 20
Shelf life
Not relevant 1
Intumescent
Yes
Product class
Ultimate
Dimensions (LxWxH)
914 x 914 x 4 mm
  1. at 77°F/25°C and 50% relative humidity; from date of manufacture

Documents

Sustainability Documentation
Operating Instruction
pdf  VOC_LEED_CDPH_CFS-COS_EN, English [ 340.8 KB ]

Features & Applications

Features

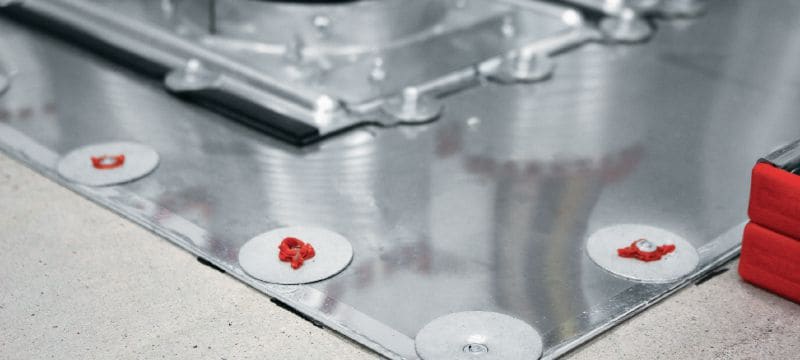

  • Tested with Hilti GX nailers for fast attachment to base material – no anchors needed
  • Compatible with cable management devices for medium- and low-voltage applications
  • Labour saver – pre-cut holes for electrical riser applications
  • Tested for up to 4 hours of fire resistance according to ASTM E814/UL1479
  • Available in non-magnetic #304 stainless steel to help improve weatherability and inductive loss in cables

Applications

  • Firestopping large openings
  • Compatible with Hilti Speed Sleeve and gangplate for floor gang applications
  • For use with large wall and floor fire-rated assemblies
