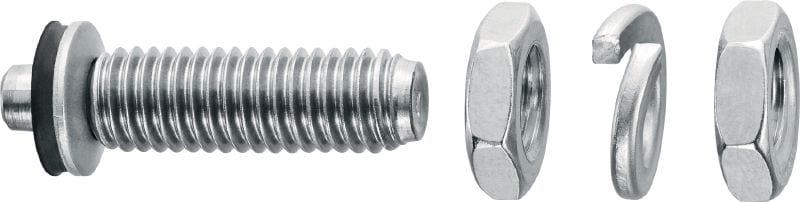

X-BT-ER Stainless steel threaded studs
Threaded stud for electrical connectors on steel in highly corrosive environments
- Base materials: Steel, Stainless steel, Cast iron
- Minimum thickness of base material (steel): 8 mm
- Corrosion protection: Corrosion protection equivalent to A4(316)
ultimate
Choose options
Thread size
- M6
- M8
- M10
Thread length
- 20 mm
- 24 mm
Pack size
- 100 pc
Quantity
Packs
Total Pieces
1
Discounted net
From PHP53,279.00
Technical Data
Base materials
Steel, Stainless steel, Cast iron
Minimum thickness of base material (steel)
8 mm
Corrosion protection
Corrosion protection equivalent to A4(316)
Environmental conditions
Outdoor, areas with heavy industrial pollution
Material
Duplex stainless steel (1.4462)
Point type
Blunt tip
Approvals
ABS, BV, DNV, LR, UL
Product class
Ultimate
Documents
Features & Applications
Features
- No rework necessary on coated steel – corrosion protection remains intact
- Enhanced safety – allows electrical current to flow through the stud and then discharges it properly into the base material
- Portable, cordless system – eliminates the need for long electric supply cords
- Fast – ideal for fastening directly to coated or treated steel
- Corrosion-resistant – suitable for marine, offshore and petrochemical applications, power plants, etc.
Applications

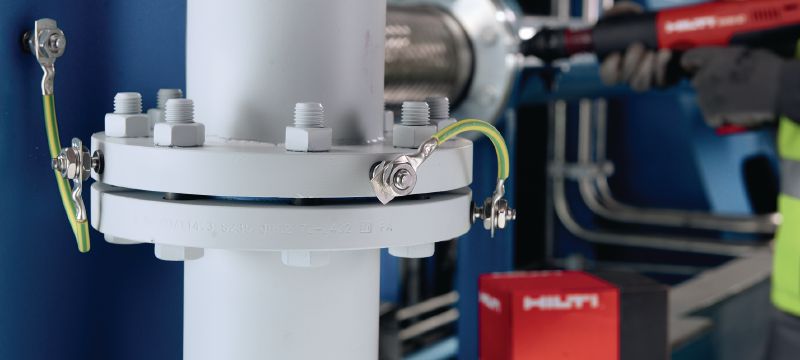

- Functional bonding
- Protective bonding
- Terminal connection
- Lightning protection
- Bonding and earthing/earthing
For approval or certificate information, please see individual items.
Related Products
Stepped drill bit for pre-drilling holes for new-generation X-BT fasteners
