S-MD05S Self-drilling metal screws

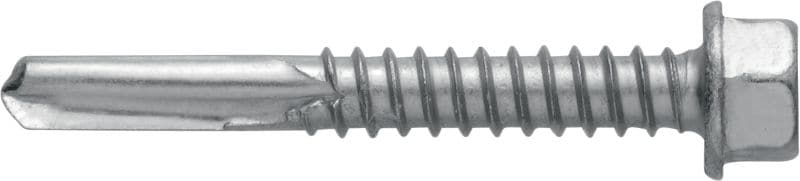

Self-drill screw S-MD05S 5,5x40 #2209615

Configurator
Technical Data
Documents
Features & Applications
Related Products
r43205,r43224

Self-drilling screw (A2 stainless steel) without washer for thick metal-to-metal fastenings (up to 15 mm)

  • Screw drive/recess type: Hexagon 8
  • Base materials: Carbon steel, Aluminium
  • Environmental conditions: Dry indoor, Indoor with temporary condensation, Outdoor with low pollution, Outdoor with moderate concentration of pollution
premium

Choose options

Thickness fastened range MF
  • 4.6 - 14 mm
Drilling capacity range DC
  • 4.6 - 15 mm
Length
  • 40 mm
Pack size
  • 250 pc
 Product options
Quantity
Packs
Total Pieces
250
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
PHP4,097.50
PHP16.39 / 1 Piece

Technical Data

Screw drive/recess type
Hexagon 8
Base materials
Carbon steel, Aluminium
Environmental conditions
Dry indoor, Indoor with temporary condensation, Outdoor with low pollution, Outdoor with moderate concentration of pollution
Screw diameter d
6 mm
Length
40 mm
Screw head diameter
10 mm
Product class
Premium
Washer type
Bonded EPDM

Documents

Approval document
Reference document
Technical information
Sustainability Documentation
Operating Instruction
pdf ETA-18/0880_for_SM_screws_2024-04-11_en, German [ 4.4 MB ]
pdf ETA-18/0880_for_SM_screws_2024-04-11_en, English [ 4.4 MB ]

Features & Applications

Features

  • Self-drilling screw for fast assembly in one step
  • For more reliable fastenings in mildly corrosive environments
  • Fast and robust drill tip for use on high-strength steel (up to grade S 450 GD) with Racing Tip technology – a wave-form cutting edge which removes chips much faster and helps prevent point burn-out
  • For more reliable fastenings with defined load values
  • Attractive final appearance – screw head can be coloured to match the façade

Applications

  • Fastening sheet metal and profiles to steel substructures and framing, with or without intermediate insulation layers
  • Stainless steel (A2) for fastening in mildly corrosive environments
  • Thick metal-to-metal connections (up to 15 mm)
