S-MD 03 Z Self-drilling metal screws

Configurator
Technical Data
Documents
Features & Applications
Related Products

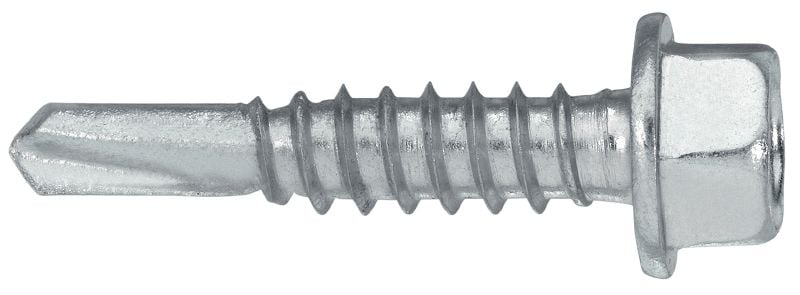

Self Drilling Screw

Self-drilling screw (zinc-plated carbon steel) without washer for medium-thick metal-to-metal fastenings (up to 6 mm)

  • Screw drive/recess type: Hexagon head
  • Base materials: Carbon steel
  • Environmental conditions: Dry indoor
premium

Choose options

Thickness fastened range MF
  • 2.6 - 7 mm
  • 2.6 - 20 mm
Drilling capacity range DC
  • 2.6 - 6 mm
Length
  • 19 mm
  • 32 mm
Pack size
  • 500 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From PHP3.95

Technical Data

Screw drive/recess type
Hexagon head
Base materials
Carbon steel
Environmental conditions
Dry indoor
Product class
Premium
Washer type
none

Documents

Reference document
Technical information
Sustainability Documentation
Operating Instruction
pdf Powder-actuated fasteners and fastening screws in steel construction, Reprint from Stahlbau-Kalender 2019, Ernst & Sohn, English [ 7 MB ]

Features & Applications

Features

  • Self-drilling screw for fast assembly in one step
  • Fast and robust drill tip with Racing Tip technology – a wave-form cutting edge which removes chips much faster and helps prevents point burn-out
  • For reliable fastenings with defined load values
  • Attractive final appearance – screw head can be coloured to match the façade
  • Galvanised carbon steel

Applications

  • Fastening sheet metal and profiles to steel substructures and framing, with or without intermediate insulation layers
  • Galvanised carbon steel for fastening in dry, indoor environments
  • Thin to medium-thick metal-to-metal connections (up to 6 mm)

For approval or certificate information, please see individual items.
