X-ENP Metal deck nails

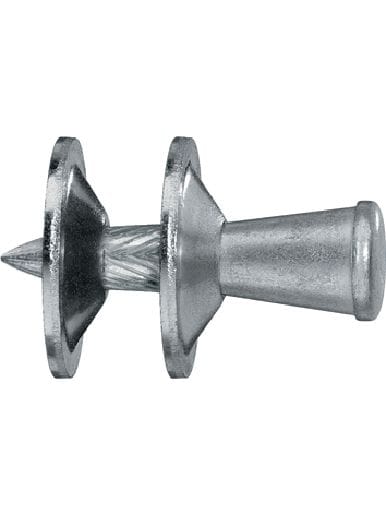

Sheet metal nail X-ENP-19 L15 #283506

Configurator
Technical Data
Documents
Features & Applications
Related Products
L054653.tif
DX 76
DX 76

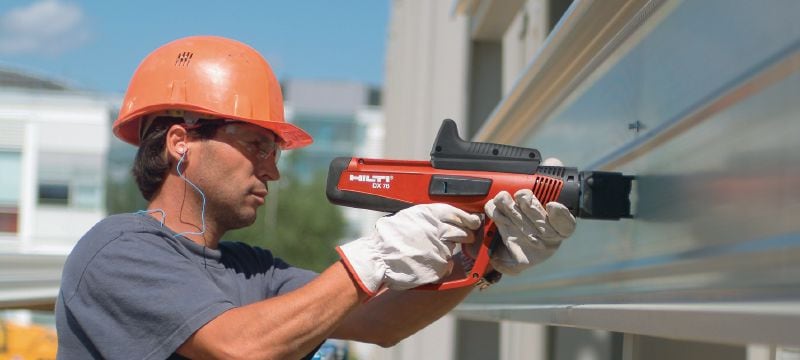

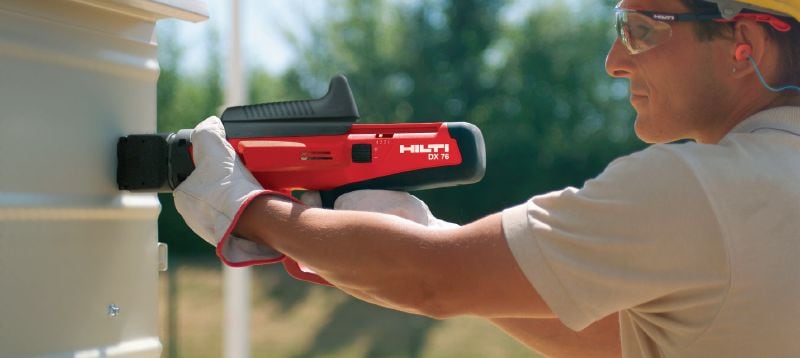

Single nail for fastening metal decks to steel structures using the DX 76 powder-actuated nailer

  • Base materials: Steel
  • Minimum thickness of base material (steel): 6 mm
  • Corrosion protection: Galvanised zinc coated <20 µm
ultimate

Choose options

Fastener shank length
  • 19 mm
Pack size
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
100
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
PHP3,326.00
PHP33.26 / 1 Piece

Technical Data

Base materials
Steel
Minimum thickness of base material (steel)
6 mm
Corrosion protection
Galvanised zinc coated <20 µm
Environmental conditions
Dry indoor
Material
Carbon steel
Fastener shank diameter
4.5 mm
Washer size
15 mm
Point type
Ballistic point
Approvals
ABS, ETA, FM, IAPMO, ICC-ES, ITB, LR, MLIT, SDI, UL
For use with (tools)
DX 76
Product class
Ultimate

Documents

Approval document
Technical information
Operating Instruction
pdf FM 3054498 for Hilti steel deck fasteners, English [ 168.7 KB ]
pdf UL R13203 HSN X-ENP 2013-06-13, English [ 64.8 KB ]
pdf ETA-04/0101 for X-ENP-19 sheet metal fastener, German, English, French, Polish [ 7 MB ]

Features & Applications

Features

  • A much faster and safer fastening system compared to welding
  • Fully knurled tip provides high holding capacity
  • High application limits – can be used on steel with a thickness of at least 6 mm (1/4&quot;)
  • Proven system and has several worldwide approvals for siding and decking
  • No predrilling required, even on thick steel

Applications

  • Fastening metal roof decks to steel structures with a minimum thickness of 6 mm (1/4&quot;) for composite decking
  • Fastening metal roof decks to steel structures with a minimum thickness of 6 mm (1/4&quot;) for roofing
  • Fastening metal roof decks to steel structures with a minimum thickness of 6 mm (1/4&quot;) for cladding
