X-CT MX Formwork nails (collated)

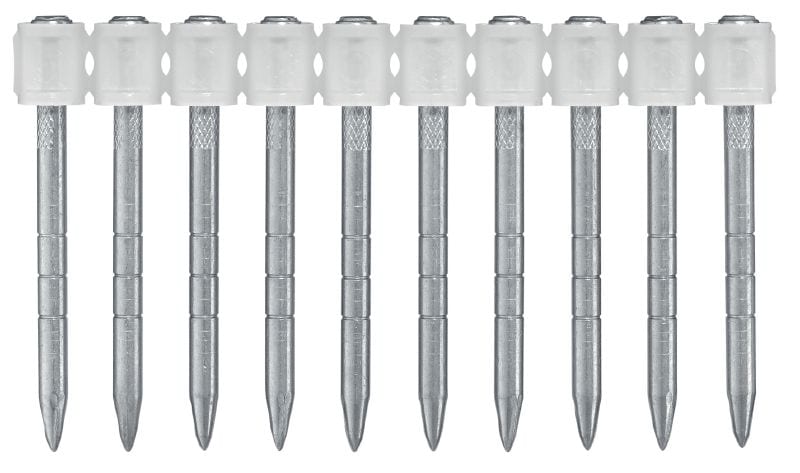

Forming nail X-CT 47 MX #383588
Collated formwork nail for use with powder-actuated tools for temporary fixing to concrete
- Base materials: Concrete (soft), Masonry (solid limestone brick), Steel
- Minimum thickness of base material (concrete): 80 mm
- Corrosion protection: Galvanised zinc coated <20 µm
premium
Customers also searched for Kicker plate fasteners, Kicker plate attachments or Temporary wood attachments.
Choose options
Fastener shank length
- 47 mm
Pack size
- 1000 pc
Quantity
Packs
Total Piece
1000
Discounted net
PHP31.99
PHP31.99 / 1 Piece
Technical Data
Base materials
Concrete (soft), Masonry (solid limestone brick), Steel
Minimum thickness of base material (concrete)
80 mm
Corrosion protection
Galvanised zinc coated <20 µm
Environmental conditions
Outdoor temporary applications, Dry indoor, Indoor with temporary condensation
Material
Carbon steel
Fastener shank diameter
3.7 mm
Point type
Cut point
Approvals
ITB
For use with (tools)
DX 460 MX, DX 5 MX
Product class
Premium
Documents
Features & Applications
Features
- Predefined shear points on the fastener for controlled fastener removal
- Fast removal – no crowbar needed
- Remove wood virtually undamaged so it can be reused
- Collated fasteners for the temporary fastening of wood to concrete
Applications
- Temporary fastening of wood to concrete
