X-ENP HVB Shear connector nails

Sheet metal nail X-ENP-21 HVB #283512

Configurator
Technical Data
Documents
Features & Applications
Related Products
6070.tif
X-HVB, DX 76 PTR

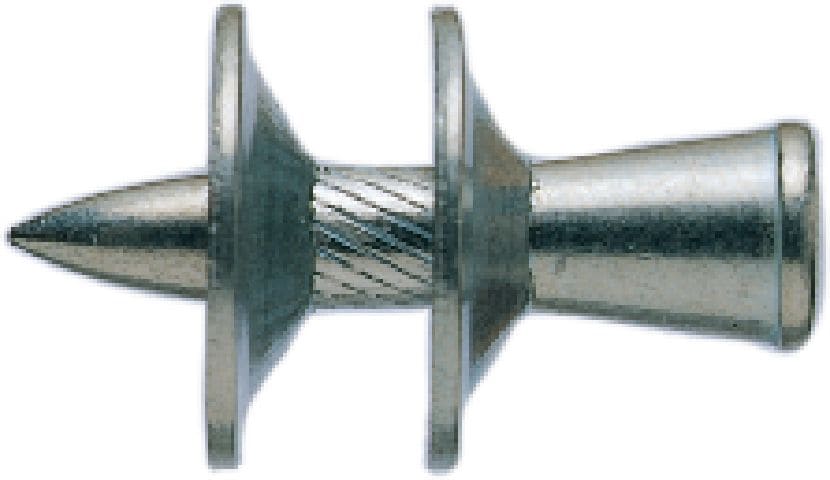

Single nail for fastening shear connectors to steel structures using the DX 76 powder-actuated nailer

  • Base materials: Steel
  • Minimum thickness of base material (steel): 6 mm
  • Corrosion protection: Galvanised zinc coated <20 µm
ultimate

Customers also searched for sheet metal nail, sheet drive pins, steel nail, steel drive pins or sheet nail.

Choose options

Fastener shank length
  • 21 mm
Pack size
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
100
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
PHP9,630.00
PHP96.30 / 1 Piece

Technical Data

Base materials
Steel
Minimum thickness of base material (steel)
6 mm
Corrosion protection
Galvanised zinc coated <20 µm
Environmental conditions
Dry indoor
Material
Carbon steel
Fastener shank diameter
4.5 mm
Washer size
15 mm
Point type
Ballistic point
Approvals
ABS, ETA, FM, IAPMO, ICC-ES, ITB, LR, MLIT, SDI, UL
For use with (tools)
DX 860 ENP
Product class
Ultimate

Documents

Approval document
Technical information
Operating Instruction
pdf ETA-15/0876 for nail shear connector, German, English, French [ 8.4 MB ]

Features & Applications

Features

  • Economical alternative shear connector compared to stud welding – no expensive equipment required
  • Portable solution which can be moved around the jobsite easily without the need for pulling electric cables
  • Ideal for renovating old buildings where welding on existing cast-iron beams can be problematic
  • Hilti web-based software available to aid optimum design in meeting the load requirements
  • Increased productivity – quick setup and usable in all weather conditions

Applications

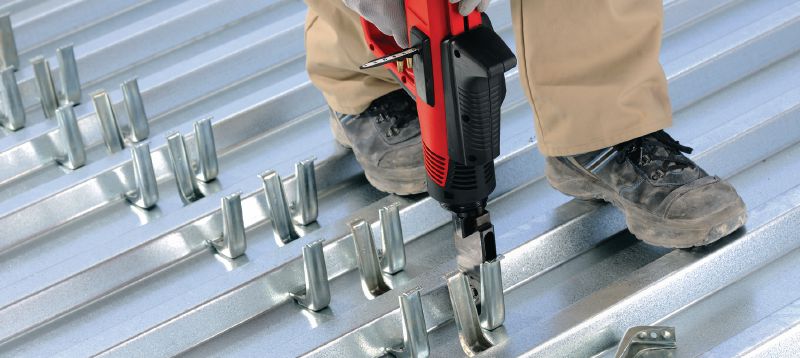

  • Fastening shear connectors to structural steel to resist shear forces and increase shear loading capacity in composite structures
