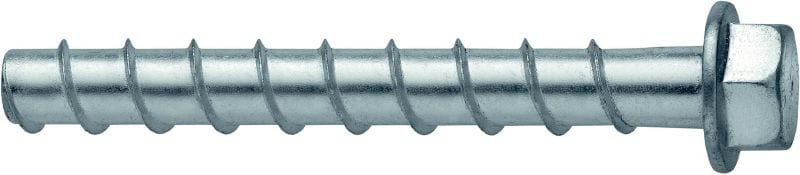

KH-EZ Concrete screw anchor

li04506.tif
KH screw anchors
KH-EZ
64298 (157006)
5993.tif

Ultimate-performance screw anchor for quicker permanent fastening in concrete (carbon steel, hex head)

  • Material, corrosion: Carbon steel, zinc-plated
  • Head configuration: Hex head
  • Approvals / test reports: ICC-ES report (concrete), ICC-ES report (masonry), LABC, Miami Dade County, Seismic

Choose options

Anchor size
  • 1/4 in
  • 3/8 in
  • 1/2 in
  • 5/8 in
Anchor length
  • 48 mm
  • 64 mm
  • 89 mm
Pack size
  • 12 pc
  • 30 pc
  • 50 pc
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From PHP7,215.00

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Head configuration
Hex head
Approvals / test reports
ICC-ES report (concrete), ICC-ES report (masonry), LABC, Miami Dade County, Seismic
Base materials
Concrete (cracked), Concrete (lightweight), Concrete (lightweight over metal deck), Concrete (uncracked), Masonry (grout-filled CMU)
Type of fastening
Through-fastening
Reusable (and removable)
Not possible
Cleaning procedures
Manual cleaning, Non-cleaning
PROFIS software
Yes
Environmental conditions
Dry indoor
Installation direction
All
Material composition
Steel, zinc-plated (min. 8 µm)

Documents

pdf ICC-ESR-3027, KH-EZ for fastening in concrete, English [ 1.6 MB ]
pdf ICC-ESR-3027-SP, KH-EZ for fastening in concrete, Spanish [ 3.1 MB ]
pdf ICC-ES ESR-3056 for Kwik HUS-EZ, English [ 1.6 MB ]
pdf ICC-ES ESR-3056 Spanish, Spanish [ 2.2 MB ]

Features & Applications

Features

  • Especially suited for seismic and cracked concrete applications and grout filled CMU blocks
  • Highly productive solution for applications requiring an ICC approval for concrete and grout filled CMU block in seismic areas
  • Quick and easy to install, with no high-accuracy torque wrench required and no hammering
  • Optimised thread design for best-in-class setting performance and superior load values
  • For use with standard ANSI-tolerance drill bit; no special tolerance drill bits required

Applications

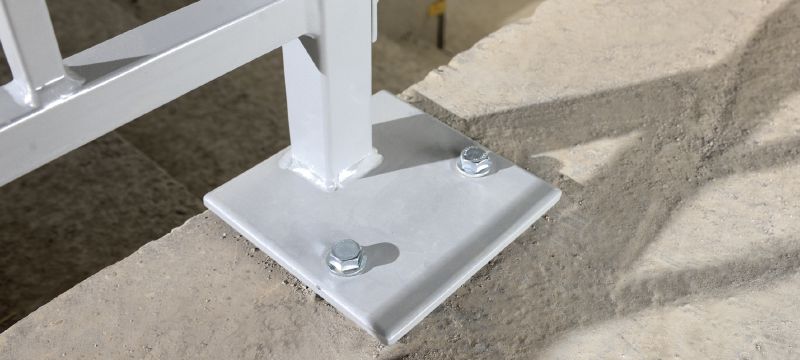

  • Attaching railings, handrails and ledgers (inside environment)

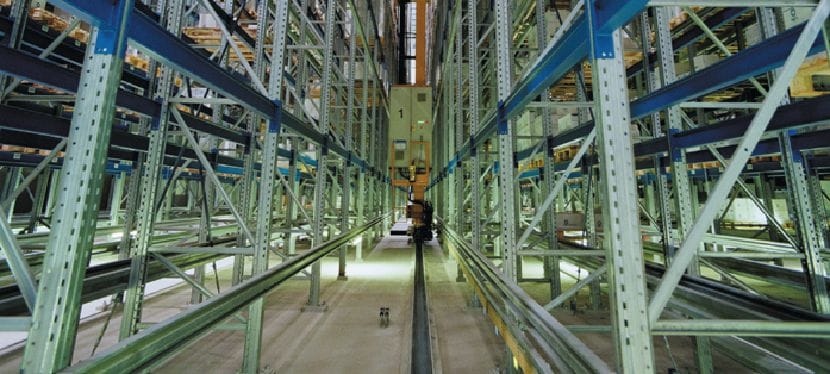

  • Racking and shelving
  • Glazing, windows and storefronts
  • Seismic braces

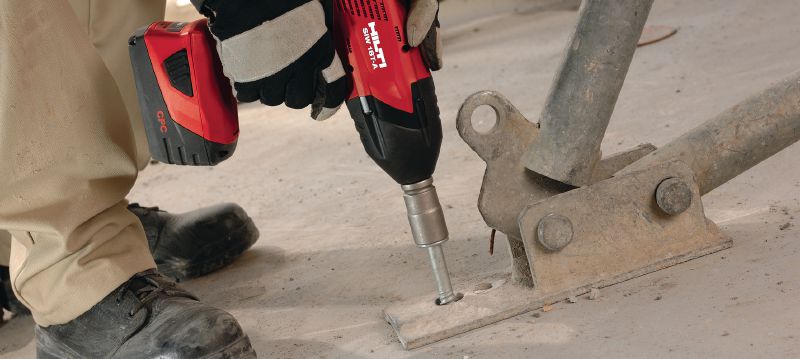

  • Anchoring formwork and tilt-up braces, sill plates, perimeter walls and seismic braces

For approval or certificate information, please see individual items.
