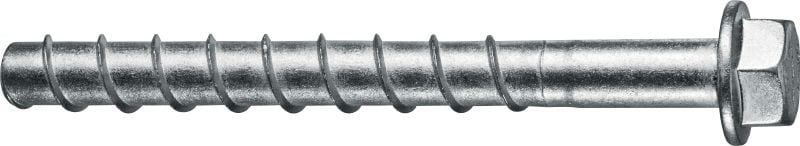

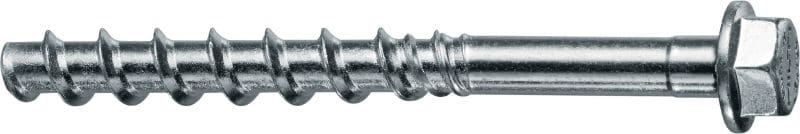

HUS4-H Screw anchor
High-performing hexagonal head screw anchor for fastening to concrete and masonry (carbon steel)
- Material, corrosion: Carbon steel, zinc-plated
- Head configuration: Hex head
- Approvals / test reports: ETA, Fire, Seismic
Choose options
Anchor size
- 8 mm
- 10 mm
- 12 mm
- 14 mm
- 16 mm
Anchor length
- 10 mm
- 45 mm
- 55 mm
- 60 mm
- 65 mm
- 70 mm
- 75 mm
- 80 mm
- 85 mm
- 90 mm
- 100 mm
- 110 mm
- 120 mm
- 130 mm
- 140 mm
- 150 mm
- 165 mm
- 180 mm
- 200 mm
- 205 mm
- 240 mm
- 280 mm
- 305 mm
Pack size
- 1 pc
- 16 pc
- 25 pc
- 50 pc
Quantity
Packs
Total Pieces
1
Discounted net
From PHP66.60
Technical Data
Material, corrosion
Carbon steel, zinc-plated
Head configuration
Hex head
Approvals / test reports
ETA, Fire, Seismic
Base materials
Concrete (aerated), Concrete (cracked), Concrete (hollow core), Concrete (uncracked), Masonry (solid)
Reusable (and removable)
Yes
Cleaning procedures
Automatic cleaning (SafeSet hollow drill bit), Manual cleaning, Non-cleaning
PROFIS software
Yes
Environmental conditions
Dry indoor
Material composition
Steel, zinc-plated (min. 5 µm)
Documents
Features & Applications
Features
- Removable, adjustable (nominal embedment ≥ 60 mm) and reusable – ideal for temporary fastenings

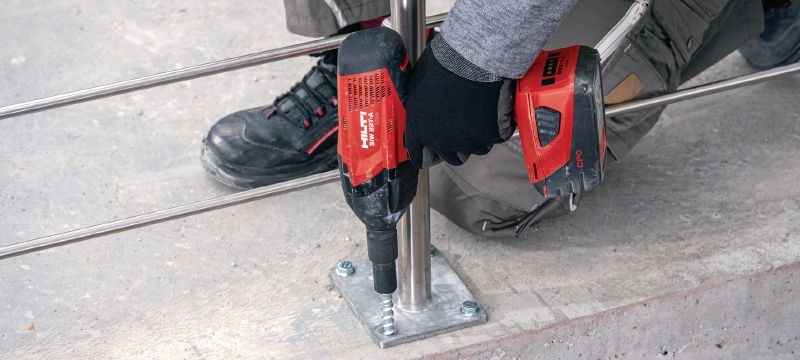

- Faster, simpler, safer installation – no cleaning, torque wrench or hammering required, now compatible with the SI-AT-22 Adaptive Torque Module
- Improved setting with less blocking – thanks to smaller core diameter and new thread design

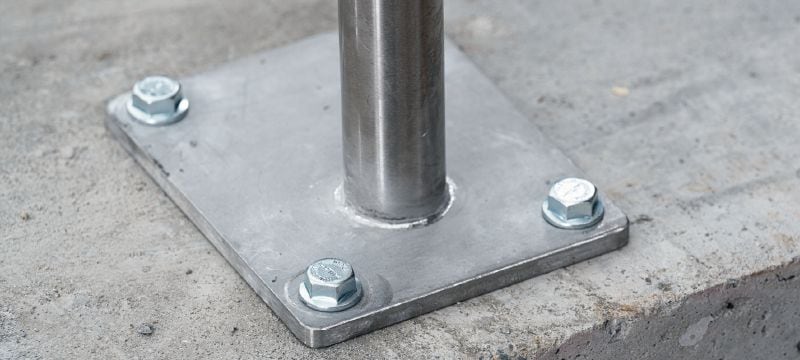

- Hexagonal head – with an integrated washer for a neat appearance of through-fastened baseplates
- Cost-saving design – pair with PROFIS Engineering software to optimise designs and reduce material costs
Applications

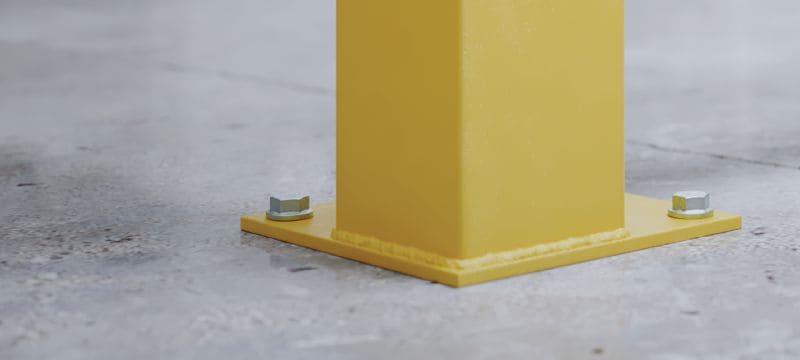

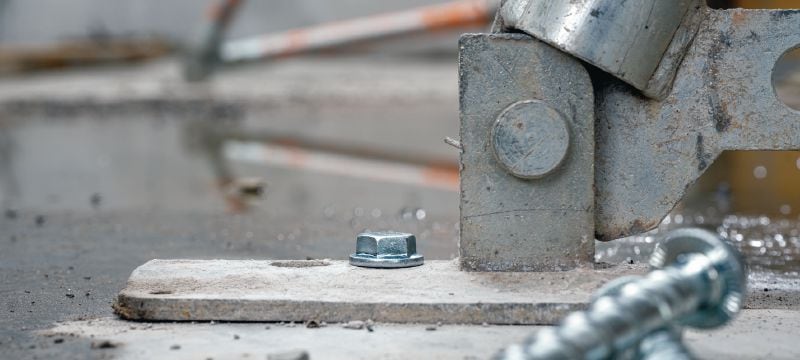

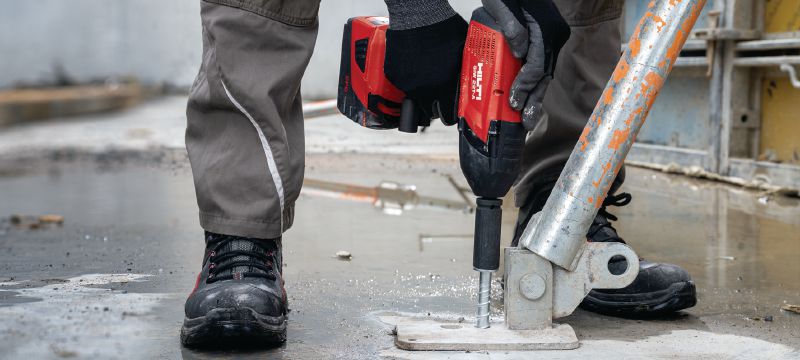

- Temporary fastenings to concrete – such as traditional formwork, propping systems and protection barriers
- Suitable for use in uncracked and cracked concrete, steel-fibre reinforced concrete, hollow core slabs (size 8-14), metal decks (size 8-10), low-strength concrete and masonry (size 8-10)
- Assessed for use in a range of conditions: static, quasi-static, seismic (C1 & C2) and fire
- Suitable for permanent fastenings in dry, indoor environments and temporary outdoor use
For approval or certificate information, please see individual items.
