HSC-IR
43709_s.tif
6265.tif
HDA
HSC-IR

Ultimate-performance shallow undercut anchor (stainless steel, internal thread)

  • Material, corrosion: Stainless steel, A4
  • Head configuration: Internally Threaded
  • Approvals / test reports: ETA, Fire

Customers also searched for stainless self-undercutting anchor, stainless shallow undercut anchor, heavy duty stainless steel wedge anchors, stainless steel internally threaded bolts or heavy duty SS seismic anchors.

Choose options

Anchor size
  • M10
  • M12
Standard embedment depth
  • 50 mm
  • 60 mm
Pack size
  • 25 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From PHP75,037.50

Technical Data

Material, corrosion
Stainless steel, A4
Head configuration
Internally Threaded
Approvals / test reports
ETA, Fire
PROFIS software
Yes
Type of fastening
Pre-fastening

Documents

Technical information
Approval document
Brochure
Instruction for use
pdf Technical data sheet for the HSC safety anchor, English [ 966.2 KB ]

Features & Applications

Features

  • Shallow embedment depth for thin concrete slabs or where permissible drilling depth is limited
  • Combines high working loads with small edge distances and close spacing thanks to very low expansion forces
  • self-undercutting facilitates fast and reliable installation – no separate undercutting tool or handling needed
  • The resulting keying effect keeps the anchor secure even in cracked concrete under shock loads
  • Requires a plain cylindrical hole to be drilled, no separate undercutting operation

Applications

  • Safety-relevant, medium-duty fastenings in cracked or uncracked concrete and corrosive environments, especially where shallow embedment and/or small edge distance or close spacing is required

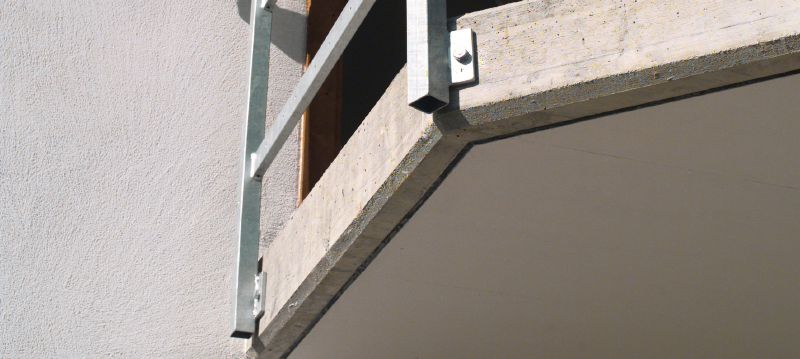

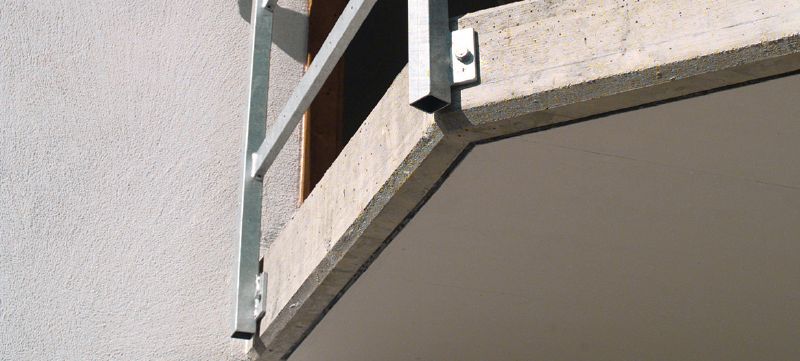

  • Examples: stair hand rails, balcony safety railings, sprinkler pipes, air ducts, seating, facade substructures, car park barriers, etc.

For approval or certificate information, please see individual items.
