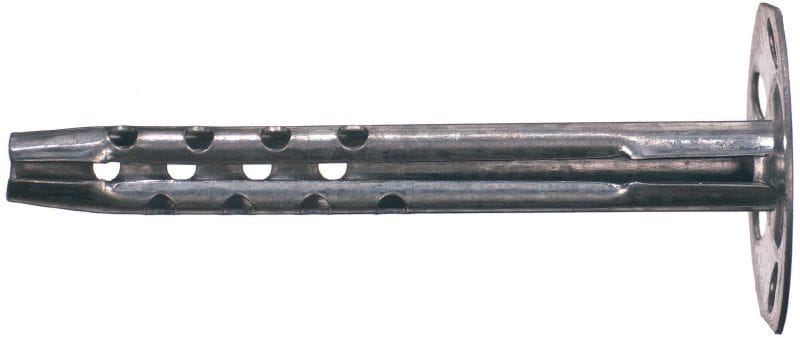

IDMS Metal insulation dowel
Economical metal insulation anchor for fastening insulating materials when fire resistance is required
- Base materials: Masonry (solid), Masonry (hollow), Concrete (tough)
- Working principle: Impact anchor
- Insulation material: Mineral wool, Soft board (e.g. EPS), Hard board (e.g. XPS, PUR, PIR)
Choose options
Insulation material thickness fastened - max.
- 30 mm
Drill bit diameter
- 8 mm
Anchor length
- 80 mm
Pack size
- 250 pc
Quantity
Packs
Total Pieces
250
Discounted net
PHP24,525.00
PHP98.10
/
1 Piece
Technical Data
Base materials
Masonry (solid), Masonry (hollow), Concrete (tough)
Working principle
Impact anchor
Insulation material
Mineral wool, Soft board (e.g. EPS), Hard board (e.g. XPS, PUR, PIR)
Environmental conditions
Dry indoor
Type of fastening
Through-fastening
Material composition
Steel, zinc-plated
Material, corrosion
Carbon steel, zinc-plated
Documents
pdf MPA/IBMB 3136/2315 for IDMS/IDMR insulation mandrels, English [ 1.1 MB ]
Features & Applications
Features
- Certified fire resistance
- Fire resistant fastener for insulation materials up to 150 mm
- Simple setting by hammering
- Versatile use for all standard insulation materials
- Insulation plates available for soft insulation material
Applications

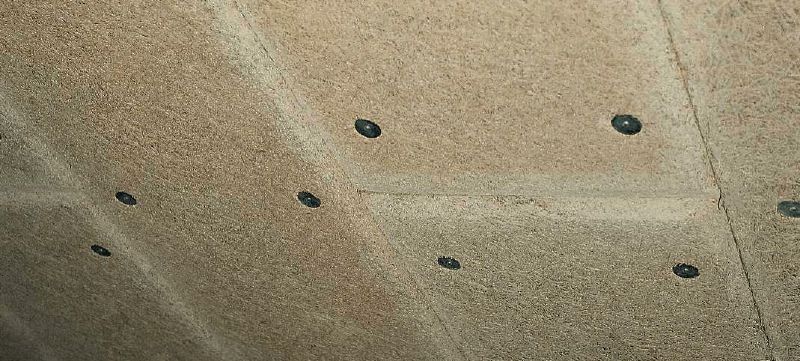

- Insulation fastenings with fire resistance requirements
For approval or certificate information, please see individual items.
