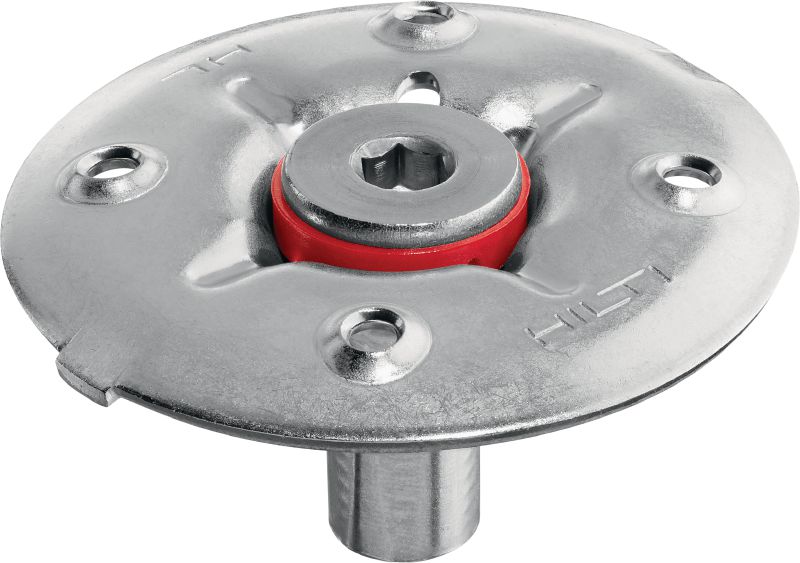

X-FCM-R HL High load grating fastener disc (stainless steel)
Stainless steel high load grating fastener disc for fixing floor grates with threaded studs in highly corrosive environments
- Application: Grating
- Approvals: ABS, BV, DNV GL, LR
- For use with (tools): DX 460, DX 5, DX 6
ultimate
Choose options
Grating height
- 23 - 28 mm
- 28 - 33 mm
- 32 - 37 mm
- 38 - 43 mm
- 48 - 53 mm
Grating width range
- 18 - 44 mm
Corrosion protection
- Stainless steel A4(316) or equivalent
Pack size
- 100 pc
Quantity
Packs
Total Pieces
1
Discounted net
From PHP63,810.00
Technical Data
Application
Grating
Approvals
ABS, BV, DNV GL, LR
For use with (tools)
DX 460, DX 5, DX 6
Corrosion protection
Stainless steel A4(316) or equivalent
Environmental conditions
Dry indoor, Indoor with temporary condensation, Outdoor temporary applications, Outdoor with low pollution, Outdoor with moderate concentration of pollution, Coastal areas, Outdoor, areas with heavy industrial pollution
Minimum thickness of base material (steel)
8 mm
Product class
Ultimate
Documents
Features & Applications
Features

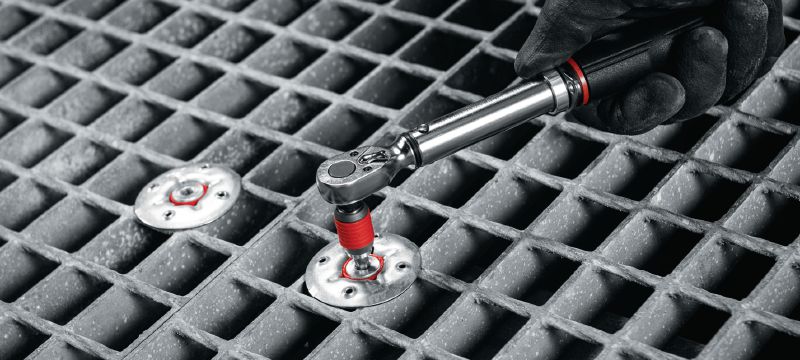

- Labour-saving grating installation – fewer steps than traditional grating clamps and welding
- Approvals and certificates – technical data, test reports and approvals available
- No surface rework needed – when fastening grating to steel with S-BT and X-BT threaded studs
- Durable hold – locking tabs on the disc help to prevent loosening or spinning
- Reduce trip hazards – non-slip surface and minimized protrusion on walkway gratings when correctly installed
Applications

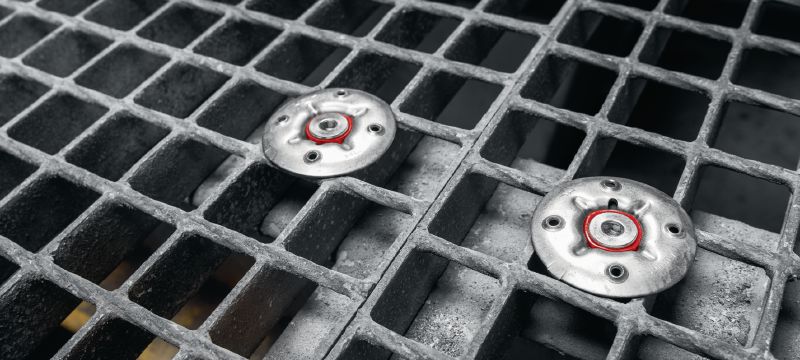

- Fastening grating to steel in highly corrosive C5 environments, such as ships or offshore oil and gas installations
- For gratings exposed to high tensile loads such as wave zone gratings
- Fastening steel grating
- Fastening fiber-reinforced plastic (FRP) grating
- Grating fastener disc for use with M8 threaded studs
For approval or certificate information, please see individual items.
