X-FCM Grating fastener disc (zinc coated)

Configurator
Technical Data
Documents
Features & Applications
Related Products
L130776 (2556323)
DX 460-GR

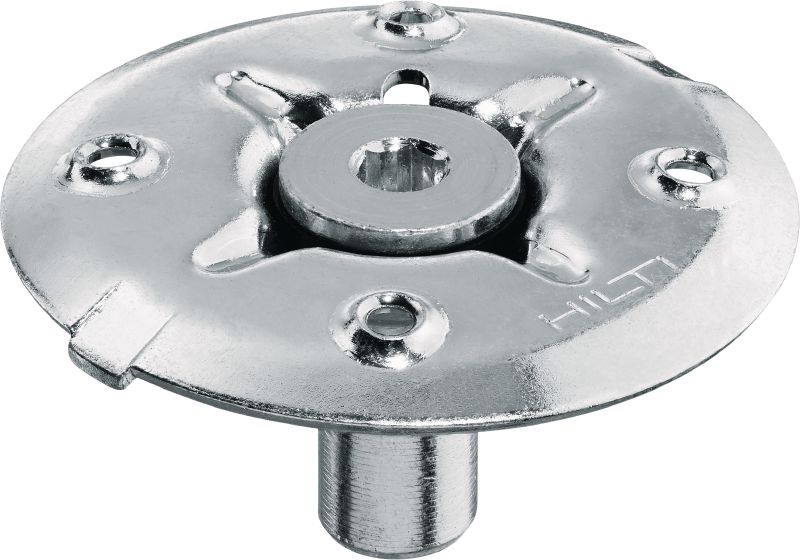

Zinc coated grating fastener disc for fixing floor grates with threaded studs in low corrosion environments

  • Application: Grating
  • Approvals: ABS, LR
  • For use with (tools): BX 3, DX 351
ultimate

Choose options

Grating height
  • 23 - 28 mm
  • 28 - 33 mm
  • 32 - 37 mm
  • 38 - 43 mm
  • 48 - 53 mm
Grating width range
  • 18 - 40 mm
Corrosion protection
  • Galvanised zinc coated <20 µm
Pack size
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Application
Grating
Approvals
ABS, LR
For use with (tools)
BX 3, DX 351
Corrosion protection
Galvanised zinc coated <20 µm
Environmental conditions
Dry indoor, Indoor with temporary condensation
Minimum thickness of base material (steel)
6 mm
Product class
Ultimate

Documents

Technical information
Approval document
Brochure
Documentation
Operating Instruction
pdf X-FCM Data Sheet, English, German, Spanish, French, Italian, Polish [ 4.6 MB ]
pdf Direct Fastening Technology Manual, English [ 6 MB ]
pdf X-BT-GR, X-BT-MR Data Sheet, English [ 2.7 MB ]

Features & Applications

Features

  • Labour-saving grating installation – fewer steps than traditional grating clamps and welding
  • Approvals and certificates – technical data, test reports and approvals available
  • No surface rework needed – when fastening grating to steel with S-BT and X-BT threaded studs
  • Durable hold – locking tabs on the disc help to prevent loosening or spinning
  • Reduce trip hazards – non-slip surface and minimized protrusion on walkway gratings when correctly installed

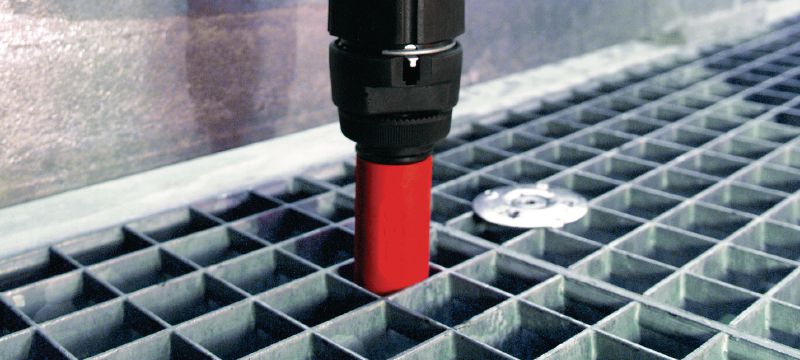

Applications

  • Fastening grating to steel in low corrosion C1 environments, such as dry and indoor locations
  • For gratings exposed to standard loads such as walkways
  • Fastening steel grating
  • Fastening fiber-reinforced plastic (FRP) grating
  • Grating fastener disc for use with M8 threaded studs

For approval or certificate information, please see individual items.
