HIT-RE 10 Epoxy anchor

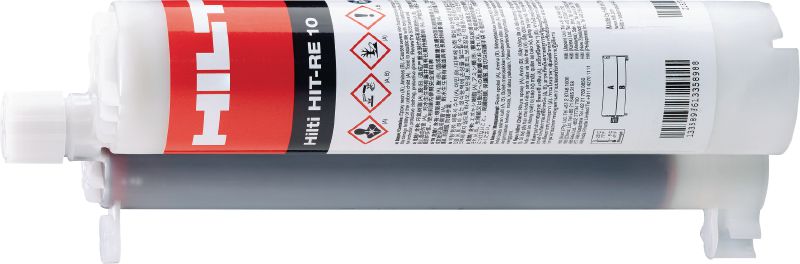

HIT-RE 10, 580 ml (90195)
L065008_HIT_RE10_V1_cropped (177789)
L066274_HIT_RE10_cropped (178172)
L095880_V1_cropped (175435)

Economical injectable epoxy mortar for anchoring in concrete

  • Base materials: Concrete (non-cracked)
  • Base material condition: Dry
  • Seismic loading: No

Choose options

Content per can/cartridge
  • 0.58 l
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From PHP1,634.40

Technical Data

Base materials
Concrete (non-cracked)
Base material condition
Dry
Seismic loading
No
Fatigue loading
No
Fire resistance
No
PROFIS software
No
Anchoring elements
HAS-U threaded rods, HIS-N internally-threaded rods, Rebar
Environmental conditions
Dry indoor
Cleaning procedures
Manual cleaning
Storage and transportation temperature range
5 - 25 °C
In-service temperature – range
-40 - 55 °C
Free of styrene
Yes

Documents

pdf Tech_HIT-RE10_2023_en, English [ 2.6 MB ]
pdf PDS_Hilti_HIT RE 10_C2C EN, English [ 1.1 MB ]
pdf Technical data sheet for HIT-RE10 with rebar as anchor , English [ 1 MB ]
pdf Technical data sheet for HIT-RE 10 injectable mortar in concrete with HIT-V rods., English [ 923.4 KB ]
pdf Technical data sheet for HIT-RE 10 injectable mortar with rebar, English [ 1.1 MB ]

Features & Applications

Features

  • The economical injection mortar solution that can replace virtually all grout fastenings
  • Suitable for post-installed rebar and concrete anchoring applications in accordance with Hilti technical data

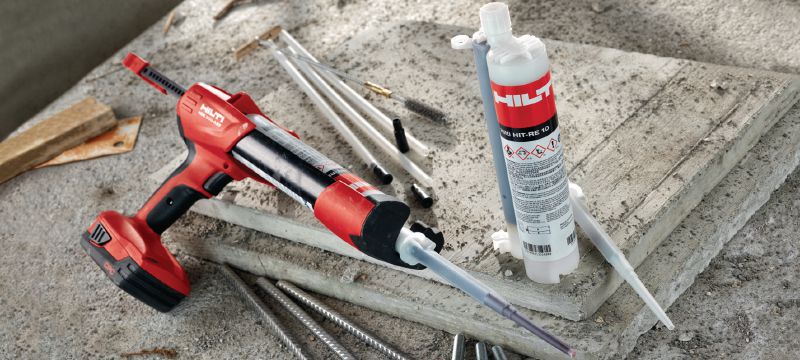

  • Compatible with Hilti’s full range of accessories (e.g. cordless electric dispenser, steel brushes, piston plug)
  • Available in 580 ml hard cartridge, suitable for use under severe on-site conditions
  • Allows flexible installation due to the long working time

Applications

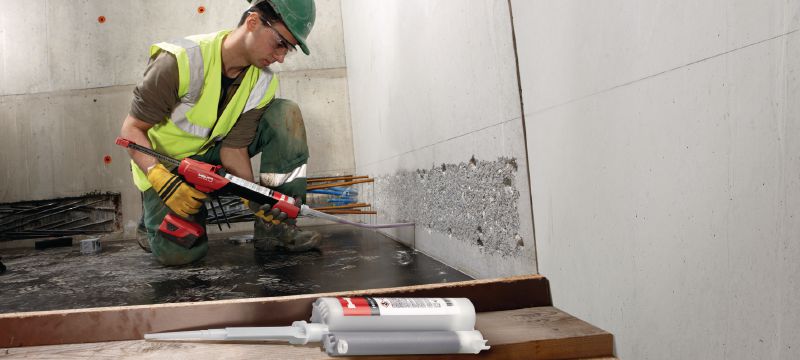

  • Substitution of misplaced/missing rebar
  • Connection of secondary post-installed rebar (e.g. staircases, upstands)
  • Renovation/upgrading of post-installed rebar
  • Rebar dowelling

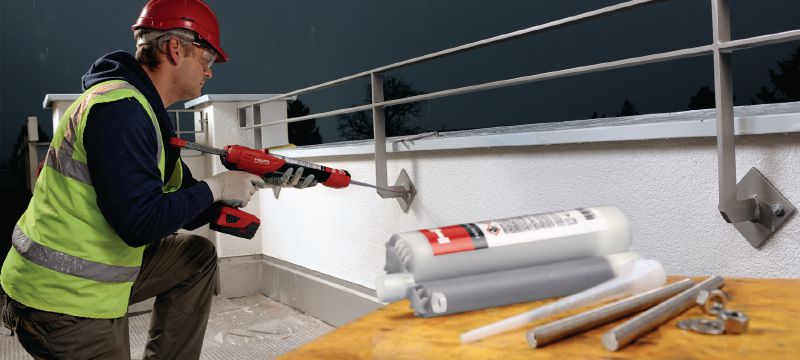

  • Anchoring non-structural secondary steel elements (e.g. columns, beams)

For approval or certificate information, please see individual items.
