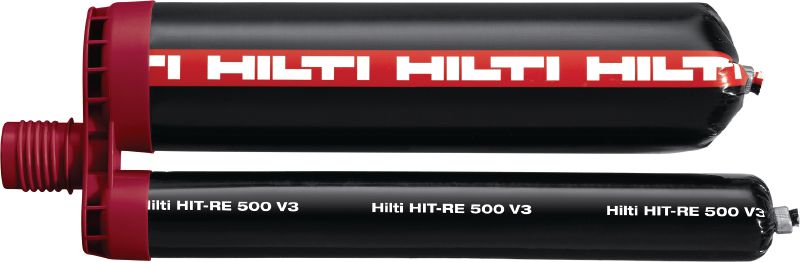

HIT-RE 500 V3 Epoxy anchor

HIT-RE 500 V3 (76358)
HIT-RE 500 V3 (78346)
HIT-RE 500 V3 (78500)
HIT-RE 500 V3 (78348)
HIT-RE 500 V3 (78501)

Ultimate-performance injectable epoxy mortar with approvals for rebar connections and heavy-duty anchoring

  • Base materials: Concrete (cracked), Concrete (non-cracked)
  • Base material condition: Dry
  • Approvals / test reports: ETA, Fire, Seismic

Customers also searched for RE 500, Chemfix or Chemical Anchor.

Choose options

Content per can/cartridge
  • 0.5 l
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From PHP6,018.30

Technical Data

Base materials
Concrete (cracked), Concrete (non-cracked)
Base material condition
Dry
Approvals / test reports
ETA, Fire, Seismic
Seismic loading
Yes
PROFIS software
Yes
Anchoring elements
HAS threaded rods, HAS-U threaded rods, HIS-N internally-threaded rods, Rebar
Environmental conditions
Outdoor
Cleaning procedures
Manual cleaning
Storage and transportation temperature range
5 - 25 °C
In-service temperature – range
-40 - 70 °C

Documents

pdf ICC-ESR-3814, Hilti HIT-RE 500 V3 for fastening in concrete, English [ 5.3 MB ]
pdf ETA-18/0745_HIT-RE 500 V3_Anchor_EC2_100years_102018_ML, English, French [ 2.2 MB ]
pdf ETA-25/0449, HIT-RE 500 V3, concrete to concrete connection, 120 year, ML, French, English [ 4.2 MB ]
pdf ICC ESR-3814 for HIT-RE 500 V3 Adhesive Anchors and Post-Installed Reinforcing Bar Connections, English [ 5.3 MB ]

Features & Applications

Features

  • High performance and technical superiority as per international approvals
  • Suitable for diamond-cored holes – when prepared using the TE-YRT roughening tool
  • Injectable epoxy suitable for all-year use – cures at temperatures down to -5°C / 23°F
  • Longer working time – allows greater flexibility during installation
  • Suitable for water-filled holes and underwater applications

Applications

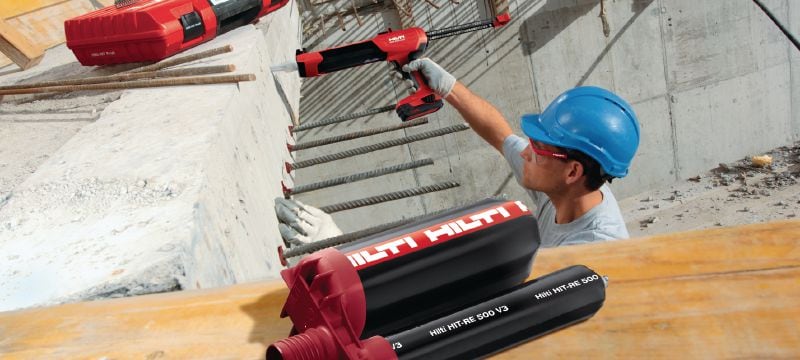

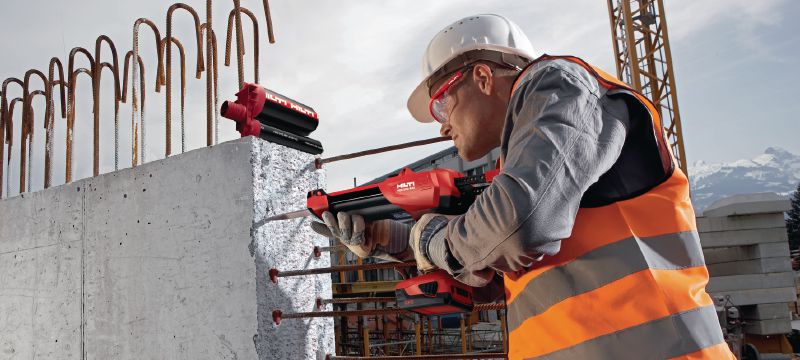

  • Structural connections with post-installed rebar (e.g. extension/connection to walls, slabs, stairs, columns, foundations, etc.)
  • Structural renovation of buildings, bridges and other civil structures, retrofitting and re-strengthening of concrete members possible
  • Anchoring structural steel connections (e.g. steel columns, beams, etc.)
  • Fastenings requiring seismic qualification
  • Fastening in natural stone and wood, including GLT and CLT made by spruce, pine or fir.

For approval or certificate information, please see individual items.
