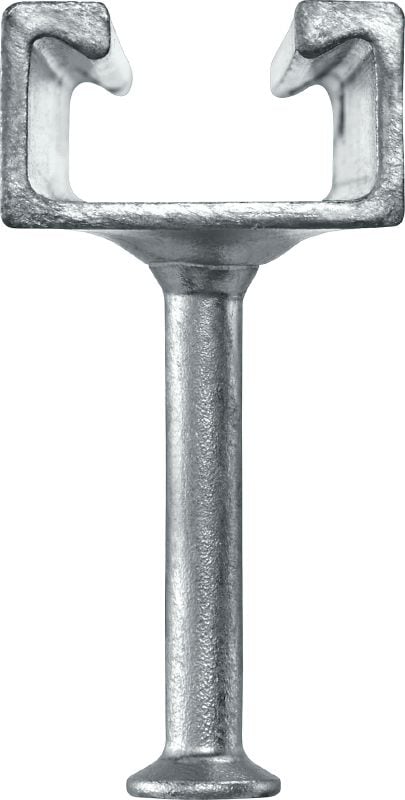

HAC-C Hot-rolled anchor channel

Configurator
Technical Data
Documents
Features & Applications
Related Products
L106748_HDG (187335)
L106750_HDG (187354)

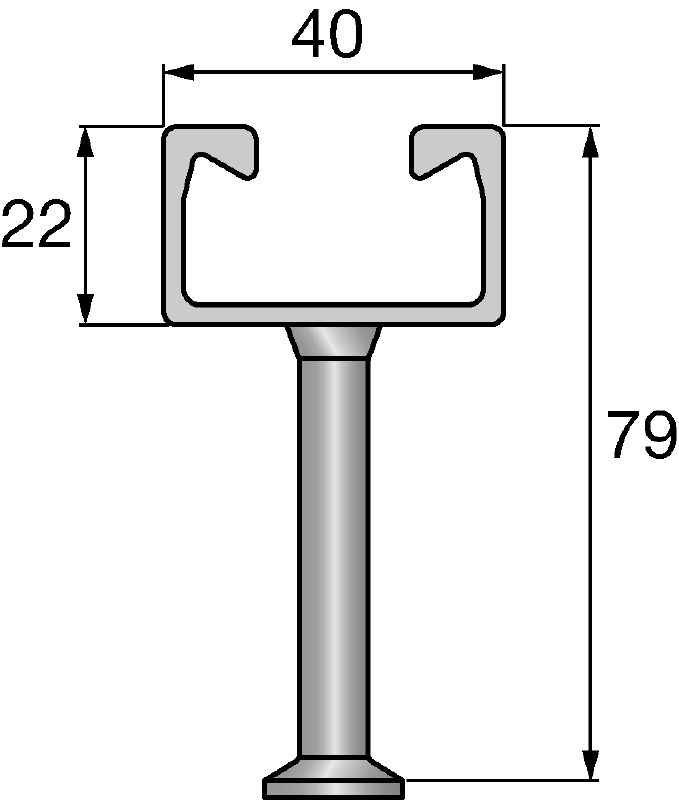

CI_HAC_C_4022_crosssection (186536)

Hot-rolled cast-in anchor channels in standard sizes and lengths suitable for a wide range of applications

  • Material, corrosion: Carbon Steel, Hot-Dip Galvanised, Stainless steel, A4
  • Channel profile: HAC-C 40/22, HAC-C 50/30, HAC-C 52/34
  • PROFIS software: Yes

Choose options

Channel profile
  • HAC-C 50/30
  • HAC-C 52/34
Length
  • 150 mm
  • 200 mm
  • 250 mm
  • 300 mm
  • 350 mm
  • 400 mm
  • 450 mm
  • 550 mm
  • 800 mm
  • 1050 mm
  • 1300 mm
  • 1550 mm
  • 1800 mm
  • 2050 mm
  • 2300 mm
  • 2550 mm
  • 3050 mm
  • 6070 mm
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From PHP1,366.20

Technical Data

Material, corrosion
Carbon Steel, Hot-Dip Galvanised, Stainless steel, A4
Channel profile
HAC-C 40/22, HAC-C 50/30, HAC-C 52/34
PROFIS software
Yes

Documents

Approval document
Technical information
Sustainability Documentation
Operating Instruction
pdf ETA-17-0336_HAC-C_Anchor channel, German, English, Polish [ 40.1 MB ]

Features & Applications

Features

  • Hot-rolled channels with thick, sturdy profiles – engineered for high load resistance

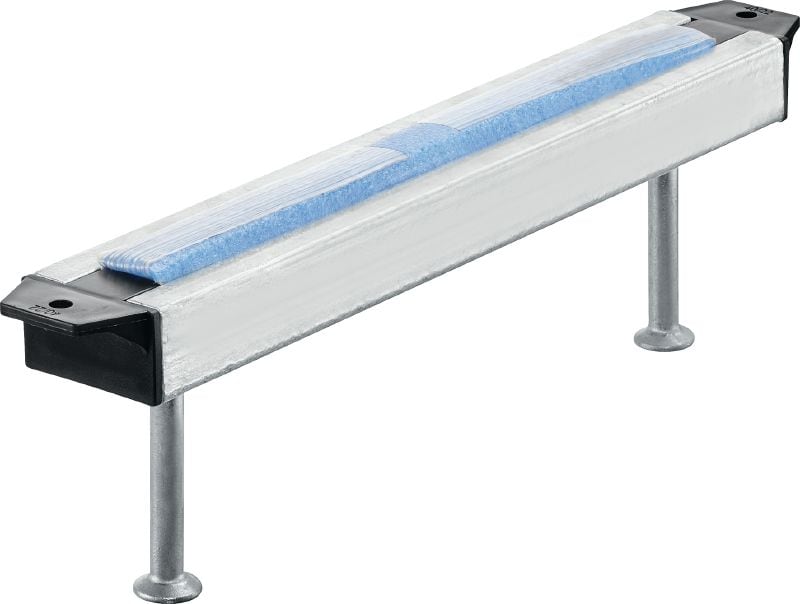

  • LDPE foam filler with grab tab – helps to keep concrete out of the channel and can be removed rapidly in one piece
  • Available in three sizes to fit virtually any installation – HAC-C 40/22, HAC-C 50/30, HAC-C 52/34
  • ETA and fire approval documents available
  • Available in stainless steel and hot-dip galvanised versions – helping to provide corrosion protection as needed for specific environmental conditions

Applications

  • Fastening production equipment (e.g. machines, conveyor belts)
  • Metro, railway or utility tunnels (e.g. fixing cantilever systems, supply pipes, signs, ventilation or support beams)
  • Curtain wall façades (e.g. fixing curtain wall elements with brackets)
  • Elevators (e.g. fixing guide-rails, sliding doors or divider beams)
  • Power plants

For approval or certificate information, please see individual items.
